Racking kit by Labo ★ K Effects

These kits make it easy to interconnect the preamp and equalizer modules of console channelstipes in order to rack them. They make it possible to connect the inputs, outputs and power supply necessary for the use of the unit by reducing to a minimum the wiring to be carried out. A Power Kit is provided to supply each type of module. The installation of High Impedance Instrument inputs, gain selector vumeters, attenuators is available as an option via a range of kits. Available in complete kits, PCBs alone or mounted and tested.
Available as a complete kit or PCBs alone.

KIT COMPOSITION :

• Double-sided PCB with metalized holes
• Connectors, components and ribbon cables
• Downloadable assembly instructions
• Input and output connectors not included (except on some models)

Input | Output Connection kit by Labo ★ K Effects

This kit makes it easy to interconnect a pre-amp module in order to rack it up. It allows to connect the audio inputs and outputs as well as the 48V power supply. Various options are available such as: High impedance instrument input, phase inverter, attenuator (PAD), 48V phantom switching, line input balancing, balanced output stage + 4dB, volume potentiometer.
For optimum results, switching is carried out by relays in order to avoid the length of cables.

Available as a complete kit , PCB alone and Built and tested

Neve 51 Racking Kit by Labo ★ K Effects

This kit makes it easy to interconnect a preamp module and a Neve 51 series equalizer module to rack them. It also allows to connect the inputs, outputs and power supply necessary for the use of the unit.
1 card allows to connect the Microphone Line and Hiz Instrument inputs. A 2nd card allows to connect the insertion send and return and includes a +4dB output stage. These boards are powered via a PSU Bus by a ribbon cable.
The "Plug and Play" design of this kit means that the modules can be checked before being racked.

This kit removes the EV10882 card from the equaliser module. Indeed, this card dedicated to the insertion send and return via a patchbay requires a supply voltage of +/-25V. The EQ interface card allows operation at +/-16V (like the rest of the modules) and contains an output stage.
2 Vu meter drivers, one LED and one analogue needle, are fitted directly to the boards.

Neve 81 | 82 | Racking kit by Labo ★ K Effects

This kit allows to interconnect one NEVE 81/82 series preamp module and one equalizer module to put them in a Rack. The kit also allows to connect output and power supply necessary for the use of the set. The PCB has been designed to be used with the 8108 , 8128 and 8248 models. It is possible to connect 81 Equalizer stand alone with balanced input and output.
Available in complete kit ,PCB alone and built and tested.

8108

8128 / 8248

81 EQ

Neve 51 | V3 | VR | Meter Kit by Labo ★ K Effects

This kit allows you to add a LED Vu meter to visualize the level of the input signal applied to the Neve 51 and V series preamp module in the rack. It is also possible to view the compressor gain reduction rate and the Overload signal (NEVE V).

VU METER FOR NEVE 51

VU METER , GAIN REDUCTION AND SIGNAL FOR NEVE V

Neve V Racking kit by Labo ★ K Effects

This kit allows to interconnect one NEVE V series preamp module and one equalizer module to put them into a Rack. The kit also allows to connect inputs, outputs and power supply necessary for the use of the set. The PSU bus system allows to connect up to 8 modules (4 preamp and EQ pairs) rather arranged vertically. This bus also allows to wire the side chain function of the compressors / gates. It connects the inputs, outputs and power supply needed to use the unit by minimizing the wiring perform. Adding an optional High impedance Instrument input is provided to the kit. The "plug and play" design of this kit is usefull to verify the proper operation of modules before moving on to the racking. New features in version 3 of the kit
LED and analogue drivers on the boards.
Adjustable dynamics, EQ and insertion positions (Matrix function)

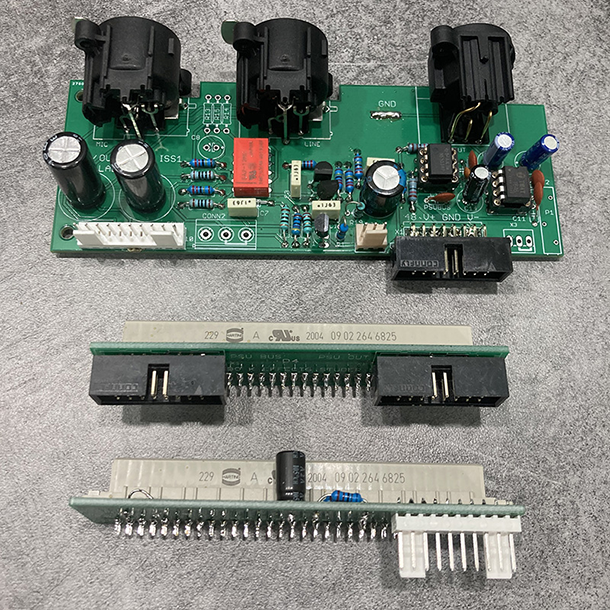

Studer 900 Racking kit by Labo ★ K Effects

This kit facilitates the interconnection of a Studer 900 preamp and equalizer module in order to rack it up. It allows to connect the audio inputs and outputs as well as the power needed to use the set.

INTERFACE

INPUT / OUTPUT

KIT WIRING :

Studer 980 Racking kit by Labo ★ K Effects

This kit facilitates the interconnection of a Studer 980 preamp and equalizer module in order to rack it up. It allows to connect the audio inputs and outputs as well as the power needed to use the set.

INTERFACE

LAYOUT OF THE OUTPUT STAGE

KIT WIRING :

Telefunken V672 Racking kit by Labo ★ K Effects

This kit makes it easy to interconnect a Telefunken V672 preamp module to a rack. It allows you to connect the audio input and outputs, a gain potentiometer and the power supply necessary for the use of the unit.

KIT WIRING :

Pad | gain selector kits by Labo ★ K Effects

These kits allow you to adapt the level of the various sources (Line and Micro) to the input sensitivity of the preamps (Langevin, Malotki, Neve, Telefunken among others. Quality components are used to ensure signal integrity and switch robustness. They can be complemented by Instrument input kits, phase reverser, pad, 48V switch and low-cut filters to optimize the use of preamps
Available as a complete kit, PCBs only or buit and tested.

COMPOSITION Des KIT :

• 1 Double-sided Pcb with metalized holes
• 1 set of precision resistors selected for the desired gains
• 1 high quality rotary selector (Grayhill)
• 1 connector

PAD Gain Selector by Labo ★ K Effects

These Pads (Attenuators) are designed to adapt the level of the various sources (Line and Microphone) to the input sensitivity of the preamps while adjusting their gain to obtain an optimal signal-to-noise ratio. The rotary switch used is a 3-pole model. 2 of them are used to form a U-pad while the 3rd selects the gain of the preamp best suited to the input attenuator.

Langevin AM16 Gain Selector by Labo ★ K Effects

Input attenuator and gain selector for Langevin AM16 preamplifier

• 6 position 3-pole Grayhill selector switch
• 0dB - 10dB - 25dB - 35dB - 40dB - 45dB

Neve 1272 Gain Selector by Labo ★ K Effects

This kit is designed to use a Neve 1272 bus amp as a microphone preamplifier. Depending on the resistance and capacitor values, it is possible to use this selector to adjust the gain of a Neve 1063 or Neve 1073 preamplifier. The 1063 version uses only 1 input transformer (Marinair 10468) for the Microphone and the Line. The 1073 version uses 2 transformers (Marinair 10468 for the Micro and Marinair 31267 for the Line). Quality components are used to ensure signal integrity and switch robustnes


Available as a complete kit, PCBs only or buit and tested.

V72 Gain Selector by Labo ★ K Effects

Gain selector for IRT preamp | Siemens | TAB | Telefunken V72

• 6 position 3-pole Grayhill selector switch
• 0dB - 10dB - 19dB - 24dB - 29dB - 34dB

V77 Gain Selector by Labo ★ K Effects

Gain selector for Siemens V77 preamplifier (replica of the W77 Telefunken)

• 6 position selector switch 4 poles Grayhill
• 0dB - 10dB - 25dB - 40dB - 50dB - 60dB

Gain Selector by Labo ★ K Effects

A 1-pole rotary switch allows you to adjust the gain resistance used by certain types of preamplifiers. Quality components are used to ensure signal integrity and switch robustness.

Malotki V71 Gain Selector by Labo ★ K Effects

• 19dB - 20dB - 23dB - 25dB - 26dB - 28dB - 29dB - 30dB - 31dB - 32dB - 33dB - 34dB

Telefunken V672 Gain Selector by Labo ★ K Effects

• 0dB - 5dB - 10dB - 15dB - 20dB - 22dB - 24dB - 26dB - 28dB - 30dB - 32dB - 34dB

Stepped resistor | pot by Labo ★ K Effects

A rotary selector with 1 pole makes it possible to achieve a precision variable resistance or a 12-step quality potentiometer. Depending on the layout of the resistors, it is possible to make a series selector (Figure 1) or a resistor selector (Figure 2). In potentiometer mode, you can choose the value and the curve (Linear, Logarithmic, Anti-log) according to your needs.

• 12 position selector switch 1 pole Grayhill
• Serial resistors
• Selection of 1 resistor
• Potentiometer up to 12 steps
• Choice of the curve (A,B,C)
• Possibility by implanting capacitors to have a variable capacitor

Power Supply kit by Labo ★ K Effects

These kits are used to supply power to various preamplifier and equalizer modules in order to rack them.
Available as a complete kit or PCBs alone.

K551X Power Supply kit by Labo ★ K Effects

This kit is used to supply the 500, 51X and K551X format modules. The power bus system allows up to 8 modules to be connected in a 19" rack

KIT COMPOSITION :

1 PCB to connect :

• 1 voltage transformer 2x24v 50/80VA (not supplied)
• This board is responsible for rectifying and filtering the AC voltage. It provides the regulated supply voltage +48V phantom
• The regulation card

1 PCB to connect :

• The power bus
• This board provides the regulated voltages +16V / -16V / -16V /+12V/-24V/+24V 48V

Connectors and components

Mounting bracket

Malotki V71 Power Supply kit by Labo ★ K Effects

This power supply provides the +280V voltage as well as the heating voltage for the Malotki V71 lamp preamps. It needs 2 transformers (not supplied). The first transforms 220V (or 110V) AC into 6V AC and heats the filaments of the lamps. The second transforms the 6V AC into 220V AC to be isolated from the mains and then attacks the High Voltage regulator which will provide the 280V DC to supply the V71. it is possible if desired to regulate the supply voltage of the filaments. it will be necessary to use 220V (or 110V) AC / 9V AC transformers and install the optional components on the Kit. This PSU can be used to feed V72 clones.

Use of 2 transformers

Neve 51/V3/VR Power Supply kit by Labo ★ K Effects

This kit is used to power Neve 51, V3 and VR legend series preamplifier and equalizer modules in order to rack them up. The power bus system allows the connection of up to 8 modules, i. e. 4 pairs of preamplifiers & equalizers.
The PSU bus also connects the Signal Threshold pins of the 51 modules as well as the Link loop of the 51 and V compressors.

KIT COMPOSITION :

1 PCB to connect :

• 1 voltage transformer 2x15v 50/80VA (not supplied)
• This board is responsible for rectifying and filtering the AC voltage. It provides the regulated supply voltage +48V phantom
• The +16V / -15V /-16V regulation board

1 PCB to connect :

• PSU Bus
• This board provides the regulated voltages +16V / -16V / -16V /-15V

Connectors and components

Neve 81 | 82 | Power supply kit by Labo ★ K Effects

This board is responsible for rectifying and filtering the AC voltage. It provides the +22V/-22V supply voltage and a +48V regulated phantom power supply. necessary for the operation of the Neve 81/82 preamplifier and equalizer. This card can supply up to 6 preamplifier/equalizer pairs.

KIT COMPOSITION :

1 PCB to connect :

• 1 voltage transformer 2x18v 50VA (not supplied)
• The +/-22V and 48V power supply bus

Connectors and components

Studer 169 Power supply kit by Labo ★ K Effects

This kit is used to supply pre-filled modules and STUDER 169 equalizer modules in order to rack them. This power supply provides the +/-15V voltages as well as the 48V Phantom

KIT COMPOSITION :

1 PCB to connect :

• 1 voltage transformer 2x15v 50/80VA (not supplied)
• This board is responsible for rectifying and filtering the AC voltage. It provides the regulated supply voltage +48V phantom
• The regulation board

1 PCB to connect :

• The power supply terminal block
• This board provides the regulated voltages +15V / -15V

Connectors and components

Studer 900 Power supply kit by Labo ★ K Effects

This kit is used to supply Studer 900 preamplifier and equalizer modules in order to rack them up. The power bus system allows the connection of up to 4 modules. All you need to do is to make the right ribbon cable. The assembly kit is used to fix the pcbs and the radiator of the power supply. The compact unit can thus be easily placed in the rack.

KIT COMPOSITION :

1 PCB to connect :

• 1 voltage transformer 2x25v 50/80VA (not supplied)
• This board is responsible for rectifying and filtering the AC voltage. It provides the regulated supply voltage +48V phantom
• The regulation board

1 PCB to connect :

• The power supply terminal block
• This board provides the regulated voltages +15V/-15V/-25V/-6V

Connectors and components

Studer 980 supply kit by Labo ★ K Effects

This kit is used to supply preamplifier and equalizer modules Studer 980 in order to rack them up. This power supply can supply up to 4 channels. The assembly kit is used to fix the pcbs and the radiator of the power supply. The compact unit can thus be easily placed in the rack. The voltages supplied are: +15.5V / -15.5V /+5.5V/+48V

KIT COMPOSITION :

1 PCB to connect :

• 1 voltage transformer 2x15v 50/80VA (not supplied)
• The regulation card
• This card provides the regulated 48V

1 PCB to connect :

• FPSU card
• The power supply bus +/-15.5V /+5.5V
• One +5.5V switching regulator

Connectors and components

Universal Power supply kit by Labo ★ K Effects

This kit is used to supply power to various preamplifier and equalizer modules in order to rack them. Depending on the transformer used and adjusting the variable resistors, it is possible to obtain various conventional regulated voltages +/- 12V, +/- 15V, +/- 18V, +/- 22V, +/- 24V as well as the 48V phantom power required for static microphones. A second negative voltage is available (for example the -15V logic of some Neve modules).

KIT COMPOSITION :

1 PCB to connect :

• 1 voltage transformer with 2 secondary windings 50/80VA (not supplied)
• The regulation card
• This board is responsible for rectifying and filtering the AC voltage. It provides the regulated +48V phantom supply voltage

1 PCB VREG to connecter :

• The power bus
• This card can provide one positive regulated voltage and two negative regulated voltages

Connectors and components

Vintage Power supply kit by Labo ★ K Effects

This kit allows to realize the +24V power supply for the modules of the 60s and 70s (Langevin, Neumann, Neve Siemens, Telefunken...) and of course the +48V phantom power supply for the static microphones...

KIT COMPOSITION :

1 PCB to connect :

• 1 voltage transformer 2x12v 50VA (not supplied)
• The +24V and 48V power supply terminal block

Connectors and components

K551x by Labo ★ K Effects

The 500 format created by API allows the use of different preamplifier modules, compressors... in the same box that provides the supply voltages and inputs/outputs. A new 51X standard has been introduced to provide additional options by using an 18-pin connector. This allows to add the necessary +/- 24V voltages to some modules while maintaining compatibility with modules typically in 500 format. We can go even further by making the backplane modular. This is why Labo K Effects has studied the problem and is able to offer different types of backplanes for the 500 enclosures, using 18-pin connectors to be compatible with the 500 and X51 standards. They have been named the K551X. These backplanes are connected to the power supply via a ribbon cable. This makes backplane configurations easy to modify and opens up new possibilities for developers. (API is a registered trademark of Automated Processes Incorporated)

K551X Standard Backplane kit by Labo ★ K Effects

Backplane K551X 04-01 Standard 4 slot K551X backplane. Allows to connect four 500/51X format modules to the inputs and outputs, Insert, or Stereo link. Can be wired via K551X INOUT output cards. Powered by the PSU BUS K551XPSU via a ribbon cable. Available in 2 slot version (K551X 02-01)

K551X Insertion Backplane kit by Labo ★ K Effects

Special 2 slot backplane K551X with 2 slots. Allows to connect 2 51X format modules to the inputs and outputs. Can be wired via K551X Inout output cards. Powered by the PSU BUS K551XPSU via a ribbon cable. The K551X type 2 allows 2 adjacent modules to communicate via relays controlled by a switch on 1 of the 2 modules. For example, insert an equalizer module into the path of a preamplifier .
Available in 4 slots (2 pairs of modules)

K551X Multi Insertion Backplane kit by Labo ★ K Effects

Special backplane K551X with 4 slots. Allows to connect 4 K551X format modules to the inputs and outputs. Can be wired via K551X Inout output cards. Powered by the PSU BUS K551XPSU via a ribbon cable. The K551X type 3 allows 3 adjacent modules to communicate with a master module. This allows up to 3 modules to be inserted in parallel in the path of a preamplifier.

K551X EUROCARD Backplane kit by Labo ★ K Effects

Special backplane K551X with 2 slots. Allows to connect 2 Eurocard format modules to the inputs and outputs. Can be wired via K551X Inout output cards. Powered by the PSU BUS K551XPSU via a ribbon cable. The K551X type 4 allows modules in 500 and Eurocard format to coexist in the same box.
The card provides specific power supplies in Eurocard format.

1 - Mounting clip

These clips were specially designed to allow the fixation of Neve 51 and V series preamp and Equalizer modules on face fronts of your Racks. Cut and drilled with laser in some steel of 2mm of thickness them allow a fixation at the same time fast, precise and solid of these modules. Fixing holes are placed in the same places as on the original frame of channelstrip. You just have to cut the silkscreened plate of the channelstrip to adapt it to the module. By using these clips it is very simple to fix the modules on the front of your rack.

2 - Lunch Box ears

These ears were specially designed to allow the fixation Labo K Effects lunch boxes in bayes in the same way as 19 inch racks. Cut and drilled with laser in some steel of 2mm of thickness them allow a solid fixation of the lunch box. Fixing holes are placed in the same places as on the original frame of boxes. It is not thus necessary to drill the lunch box to equip it with these ears. It is very simple to transform the lunch box into a 19 inches Rack.

3 - FPSU metalwork

Base of fixation for the Labo ★ K Effects's FPSU power supply. Cut and drilled with laser in some steel of 2mm of thickness, This base supports the FPSU card. The set forms a compact power supply easy to fix inside the rack.

4 - FPSU-VREG metalwork

Base of fixation for the Labo ★ K Effects's FPSU-VREG power supply. Cut and drilled with laser in some steel of 2mm of thickness, This base supports the FPSU and VREG cards and the radiator and regulators. The set forms a compact power supply easy to fix inside the rack.

5 - BUS PSU Adapter by Labo K Effects

This little card allows to connect the power supply to the Neve 51/V3/VR kits PSU bus via 5 cables. It can also connect to the bus for powering other cards without using IDE connector.

enclosure by Labo ★ K Effects

Empty or pre-wired boxes for your modules.
A range of boxes in Rack 19 or Lunchbox format available empty drilled and engraved or serigraphed + connectors, interface kits, power supply kits or fully pre-wired to accommodate audio modules

enclosure K551X by Labo ★ K Effects

Rack in kit that can receive 8 modules in 500, 51X and K551X formats. Integrated power supply.

enclosure NEVE 81 by Labo ★ K Effects

19" 3U pre-wired 19" rack to be loaded with 2 preamps and 2 equalizers from an Neve 81 series console from the 80's

enclosure NEVE V by Labo ★ K Effects

Lunchbox or rack 19 pre-wired to be loader with 2 preamps and 2 equalizers from a Neve 51/V series console from the 80s Suitable for Neve 51, Neve V3, Neve VR modules Once the modules are fixed in the rack using the elements provided for this purpose, simply connect their ribbons to the interface connectors. Internal power supply HiZ inputs on the front panel....

enclosure V71 | V72 | V77 by Labo ★ K Effects

Empty or pre-wired boxes for your modules.
Internal power supply for V71

enclosure V672 by Labo ★ K Effects

Rack 19 pre-wired to receive 2 Telefunken V372/V672 preamps

• Internal power supply including 48v phantom
• Input impedance selector switch
• Pad -20dB
• Phase inverter
• 12-step gain selector switch
• 1 balanced output adjustable by potentiometer
• High impedance instrument inputs on the front panel
• Input and output on XLR
• 115/220V AC mains power supply
