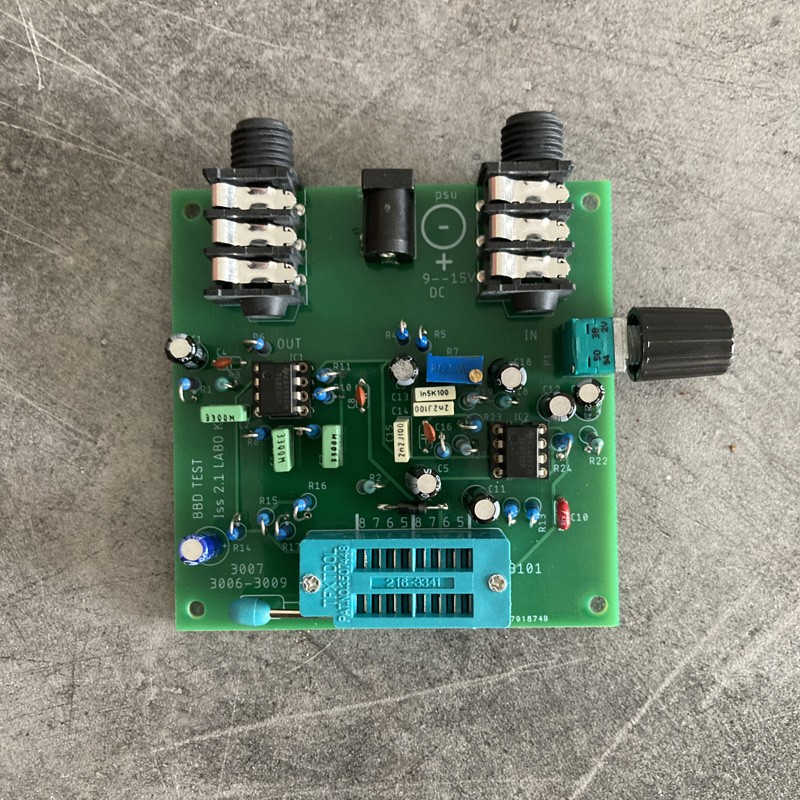

BBD TESTER by LABO K EFFECTS
The BBD TESTER is a test board designed to quickly and efficiently test the most common BBD circuits.
It allows you to test the MN3006, MN3007, and MN3009 circuits, as well as the MN3101 clock generator.
The MN3101 can be tested on its own. The presence of both clock signals is then verified using an oscilloscope.
BBD circuits require an MN3101 to function. They are tested using audio, which allows you to immediately verify their proper operation and the quality of the transmitted signal.
Features
• Compatible with the MN3006, MN3007, 3MN009, and MN3101.
• Standalone testing of the MN3101.
• Audio testing of BBD circuits.
• Audio input and output connectors.
• Power connector.
• Effect level (mix) potentiometer.
• Trimmer for adjusting the BBD bias voltage.
The BBD TESTER is the ideal tool for verifying the condition and authenticity of BBD circuits, particularly those purchased on the secondhand market or from online sellers. It allows you to quickly distinguish a functional component from a defective one before integrating it into a circuit.
